On Head Valve Spring Tester

The Most Accurate On Head Valve Spring Tester

The continuing search for horsepower in today's racing engines require more radical camshaft profiles than ever, which are very demanding on valve springs.  Many people neglect valve spring maintenance, which not only robs power, but is damaging to your valve train. Until now, the only way to accurately measure valve spring pressure was to disassemble each spring and check it on a bench tester. There are several companies that claim to have an accurate method of testing springs on an assembled engine, but many claims fall short. At Buxton Engineering, we feel that we have revolutionized the process for on head spring testing. We guarantee this tool to give bench tester results, with no second guess.

  • Test 16 valve springs in minutes with bench  tester accuracy.

  • Works on most wedge head configurations. Shaft or stud mounted rocker arms.

  • CNC machined from billet 6061-T6 aircraft aluminum.

  • Used by many top race teams.

  • 0-300, 0-600 lb scales available.

  • Adjustable to fit 1.45 - 2.2 pivot length rocker arms.

  • U.S. Patent

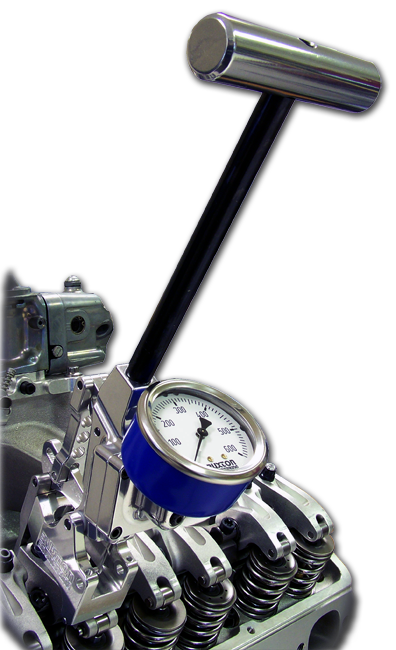

On Head Valve Spring Tester

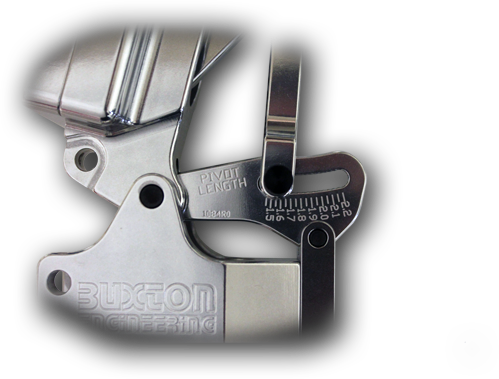

Quickly set scale to rocker arm pivot length for bench tester accurate measuments.
On Car Spring Tester - Pivot Length

Low Profile

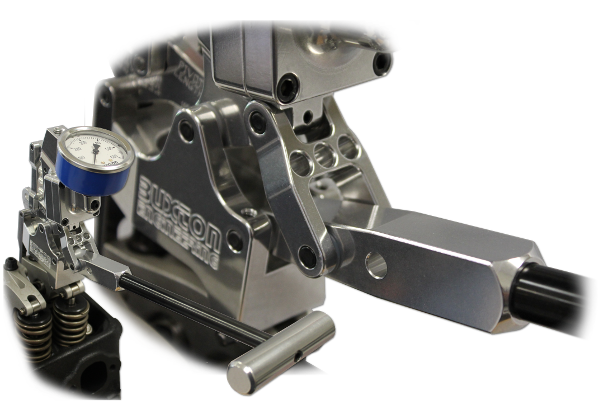

Handle Mount Kit

We now offer a low profile handle mount kit for our on head testers.
On Head Valve Spring Tester - Low Profile Handle

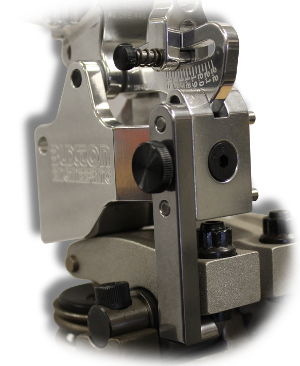

We now have a "0 Clearance" on head valve spring tester available. Designed especially for the GM LS series engines where valve cover rail to rocker arm clearance is an issue.
0 Clearance LS ON Head Valve Spring Tester
Click Here to view frequently asked questions about our on head testers
Part #
Description
Price
PVST-300
300 lb. 1.45 - 2.2 Pivot Length - On Head Valve Spring Tester
 $765.00
PVST-600
600 lb. 1.45 - 2.2 Pivot Length - On Head Valve Spring Tester
$765.00
PVST-SH-300
300 lb. 1.45 - 2.2 Pivot Length - 0 Clearance On Head Valve Spring Tester
 $765.00
PVST-SH-600
600 lb. 1.45 - 2.2 Pivot Length - 0 Clearance On Head Valve Spring Tester
 $765.00
PVST-20
On Head Tester - Low Profile Handle Kit
 $80.00
PP-PVST-1
On-Head Valve Spring Tester Wall Mount
 $20.00
We sell direct. Call us today at 812-897-3609
Click here to see pivot length setting in detail.

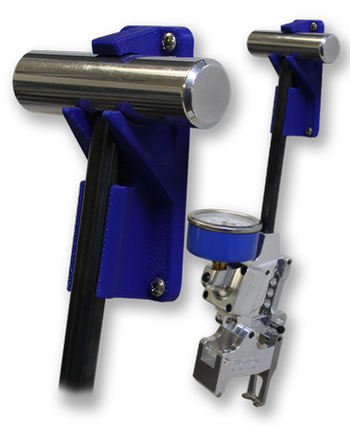

On Head Valve Spring Tester - Wall Mount
On-Head Valve Spring Tester Wall Mount
3D printed from very tough and resilient PETG plastic. Great for the shop or trailer.
