• Micrometer adjustable angle settings in 1 degree increments.

  • Ball screw design can produce 800 lbs. of linear force with only 2.3 ft.-lbs. of rotating torque.

  • Will accommodate most rocker arm length and offsets.

  • Camlock design for fast and easy installation and removal.

  • Completely universal. Requiring only different base adapters for different engines, not a different tool.


  • CNC machined from billet 6061-T6.

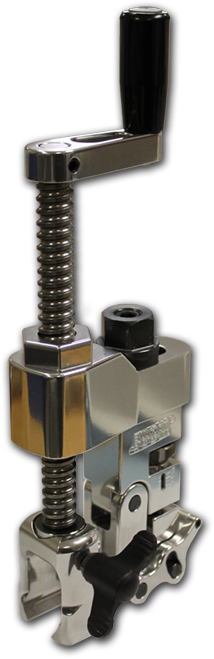

On Head Valve Spring Compressor
Click here for a complete list of engine applications and base adapter part numbers.

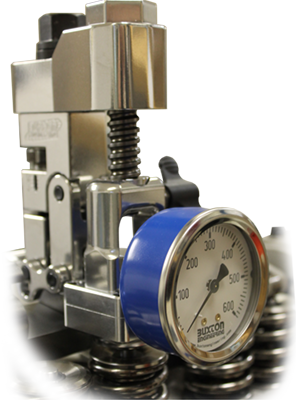

Valve Spring Compressor - Pressure Tester
If you own one of our valve spring compressors, this is one tool you will definitely want to add to your tool box. It allows for a quick accurate seat pressure test after installing a new spring or shimming an old one. Call for details.
Valve Spring Compressor
Seat Pressure Tester Adapter
The fastest and easiest on car spring changer.
Valve Spring Compressor - Pressure Tester 2
Part #
Description
Price
VSC-1
Universal Valve Spring Compressor - w/1 Base Adapter
 $565.00
VSC-32
Billet Wrench
 $38.00

Additional Base Adapters
$70.00
We sell direct. Call us today at 812-897-3609

Part #
Description
Price
VSCT-300
Spring Compressor Seat Pressure Tester Adapter 0 - 300 lb.
$235.00
VSCT-600
Spring Compressor Seat Pressure Tester Adapter 0 - 600 lb.
 $235.00
We sell direct. Call us today at 812-897-3609
You will only need to purchase additional
base adapters for your different setups.
On Head Valve Spring Compressor

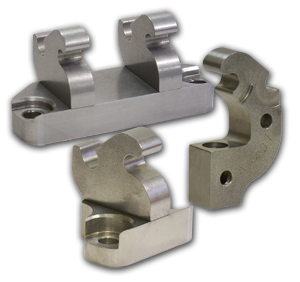

Base Adapters for spring compressor
This unit is universal. You will not need to purchase a completely different tool for your different engine, rocker arm or cylinder head combinations.
Billet Wrench
Optional Billet Wrench
As shown above left
On Head Valve Spring Compressor
